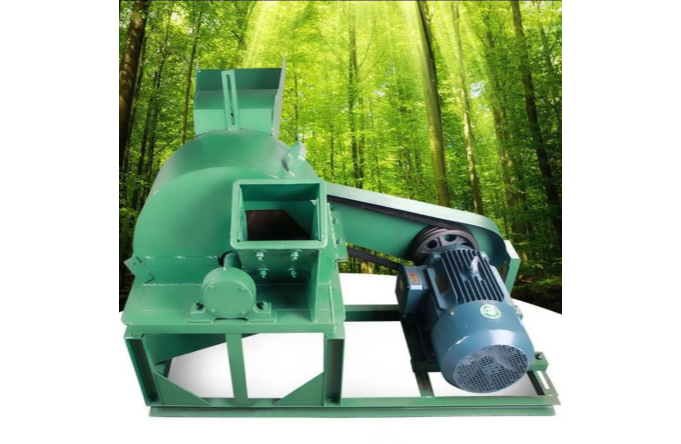

Wood Crusher

A wood crusher is a professional agricultural and forestry machinery. It is mainly used to crush logs, branches, planks, crop stalks, corn cobs and other wood & agricultural waste into wood chips or sawdust.

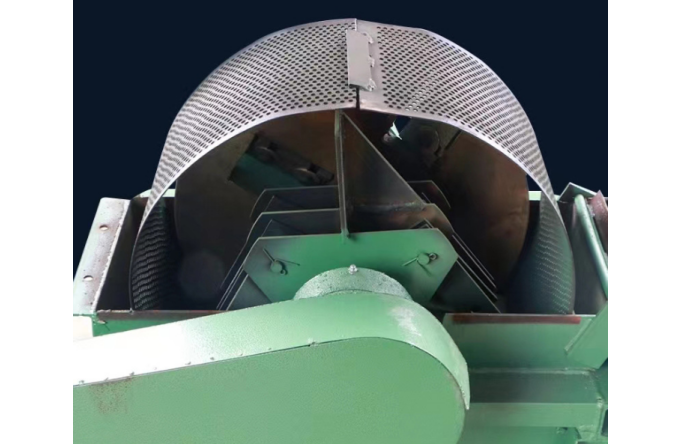

The discharging particle size can be freely adjusted by replacing screen meshes with different apertures.

Send Email Get Price

Product introduction

Biomass fuel for boilers
Substrate for mushroom cultivation
Raw materials for wood panels, fiberboards and papermaking
Recycling of garden waste and waste wood

Features

We supply a full range of models for small workshops and large industrial production. The machine features stable operation, high output, easy operation and simple maintenance.

O1CN01GLLlvT1RjNAYS8HMx_!!2215543032147-0-cib

Model	420	500	600	700	800	1000
Cutter Head Diameter (mm)	400	500	600	700	800	1000
Number of Blades [pcs]	4	4	4	4	4	4
Blade Length (mm)	90	100	150	200	230	260
Feed Opening Size (mm)	160×200	180×200	200×200	200×250	250×300	300×400
Spindle Speed (r/min)	2600	2600	2600	2300	2000	2000
Matching Power (kW)	7.5-11	15	18.5-22	22-30	37-45	75
Output Capacity (kg/h)	600-900	800-1000	1200-1500	1800-2000	2500	3000-4000
Discharging Particle Size (mm)	\multicolumn{6}{c}{Adjustable by changing screen mesh according to customer requirements}
