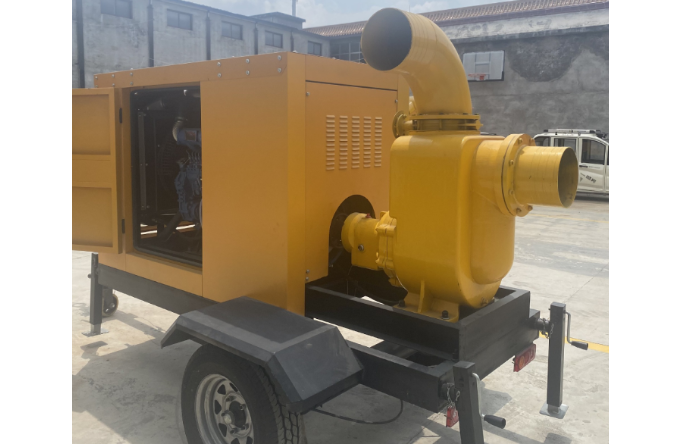

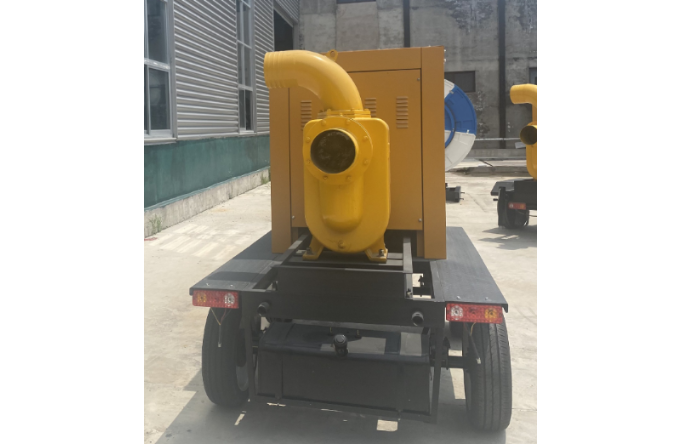

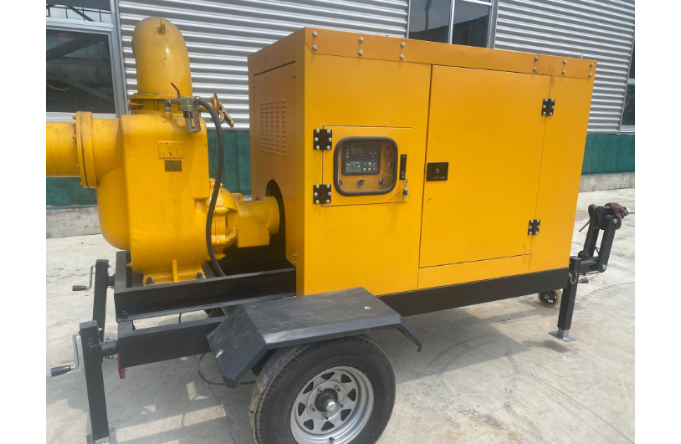

Mobile pumping trucks for flood control are specialized mobile drainage equipment used for flood prevention, drainage, and emergency rescue. Typically driven by a diesel engine or electric motor, they are equipped with high-efficiency water pumps, control systems, and mobile chassis (such as trailers or self-propelled vehicles), enabling them to quickly reach disaster sites for pumping and drainage operations. Suitable for urban flooding, river flood control, underground garage drainage, and farmland irrigation, they are characterized by high mobility, large drainage capacity, and ease of operation, making them an important piece of equipment for flood control and disaster relief.
PRODUCT INTRODUCTION
01. High-efficiency drainage capacity: Optional self-priming pumps allow for rapid start-up without priming, saving rescue time. Utilizing high-flow centrifugal or submersible pumps, single-unit flow rates range from 100 to 5000 m³/h, with head coverage from 10 to 50 meters, meeting diverse operational needs.
02. Flexible mobility: Some models are equipped with self-propelled chassis or tracked designs, eliminating the need for additional towing equipment. Integrated into trailers or vehicle-mounted designs, they can be quickly transported to disaster areas and adapt to complex terrains (such as muddy or narrow streets).
03. Multi-power adaptability: Diesel engine drive: No external power supply required, suitable for fieldwork or areas without power supply. Electric motor drive: Low noise, zero emissions, suitable for urban locations with high environmental protection requirements.
Optional dual-power (diesel-electric integrated) to meet diverse needs.

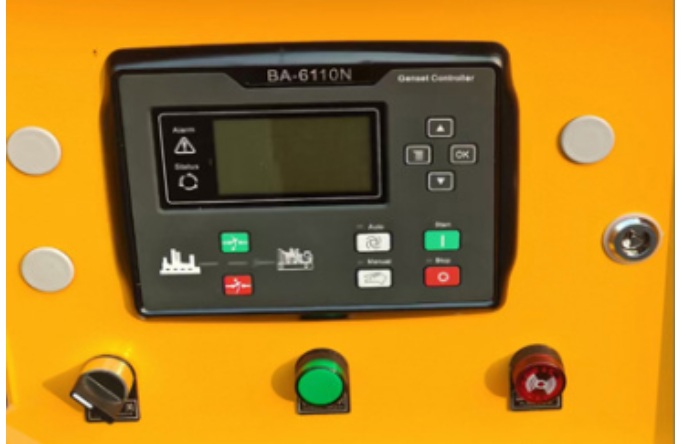

04. Intelligent control system: Equipped with PLC or IoT remote monitoring, displaying real-time data such as flow rate, pressure, and fault alarms.
Supports automatic start/stop, overload protection, and phase loss protection functions to ensure safe operation.
05. Strong Environmental Adaptability: Capable of pumping wastewater containing silt and impurities; some models are equipped with filters to prevent clogging. Rust and corrosion resistant materials (such as stainless steel pump body and rain cover) allow for adaptation to harsh weather conditions (heavy rain, high temperatures, etc.).
06. Rapid Deployment and Maintenance: Equipped with a toolbox for vulnerable parts, facilitating on-site maintenance. Modular design with standardized pipe and cable interfaces allows for installation within 10 minutes.
| Model | Aliber(mm) | Flow (m³/h) | Head(m) | Power(kw) | Dimension(Excluding traction mm) | Weight (kg) |
| HPT100 | 100 | 330 | 40 | 23 | 1800 * 1500 * 1800 | 1200 |
| HPT360 | 150 | 360 | 25 | 36 | 2000 * 1500 * 1900 | 1400 |
| HPT600 | 200 | 600 | 22 | 44 | 2200 * 1500 * 1950 | 1600 |
| HPT800 | 250 | 800 | 22 | 60 | 2450 * 1800 * 2160 | 1800 |
| HPT1000 | 300 | 1000 | 23 | 72 | 2550 * 1800 * 2200 | 2200 |
| HPT1500 | 350 | 1500 | 21 | 103 | 2850 * 1800 * 2260 | 2500 |
| HPT2000 | 400 | 2000 | 23 | 120 | 3100 * 2000 * 2350 | 2800 |
| HPS100-2 | 100 | 150 | 30 | 23 | 2200 * 1600 * 1900 | 1600 |
| HPS360-2 | 150 | 360 | 35 | 36 | 2200 * 1600 * 1900 | 1600 |
| HPS600-4 | 200 | 600 | 26 | 72 | 2200 * 1500 * 1950 | 2000 |
| HPS800-4 | 250 | 800 | 30 | 103 | 2650 * 1800 * 2200 | 2300 |
| KTL300 | 200 | 300 | 15 | 36 | 2200 * 1600 * 1900 | 1700 |
| KTL500 | 250 | 500 | 15 | 60 | 2200 * 1600 * 1900 | 1900 |
| KTL800 | 2 * 200 | 800 | 15 | 103 | 2650 * 1800 * 2200 | 2300 |
| KTL1000 | 2 * 200 | 1000 | 15 | 120 | 2650 * 1800 * 2200 | 2300 |
| KTL1500 | 3 * 200 | 1500 | 15 | 138 | 2950 * 1800 * 2200 | 2800 |
| KTL2000 | 4 * 200 | 2000 | 15 | 181 | 3050 * 1800 * 2200 | 3500 |
