High-speed fully automatic bagging machine

The high-speed fully automatic bagging machine (also called a fully automatic bag feeding machine/bag packaging machine) is an automated equipment that integrates automatic bag picking, bag opening, bag putting, positioning, bag clamping, sealing/bag transfer. It can be connected to downstream processes such as filling, weighing, and heat sealing to achieve unmanned operation of the entire packaging process.

Product introduction

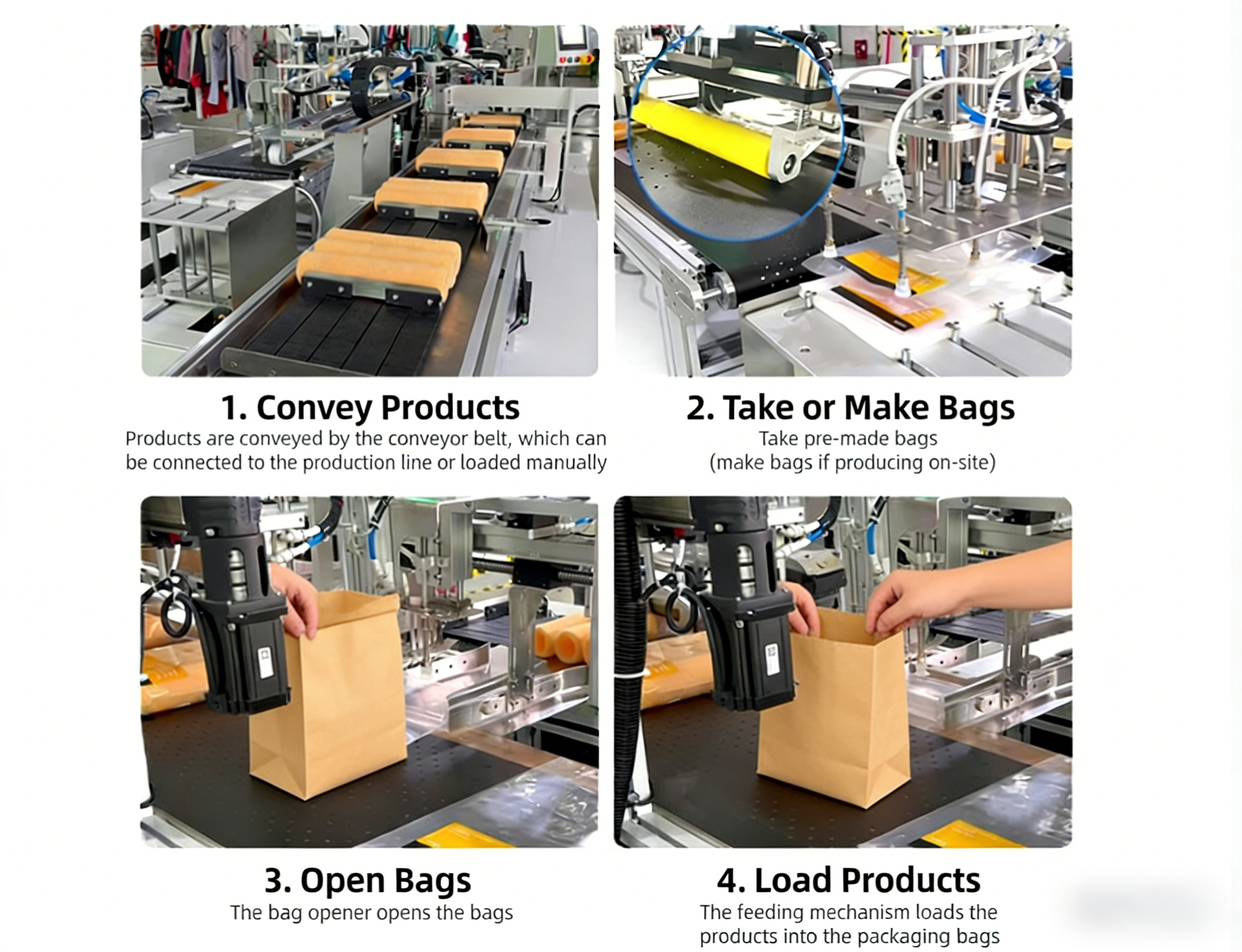

Standard Workflow (3–5 seconds/bag)

  • Bag Retrieval: A vacuum suction cup picks up a pre-made bag (PE bag, woven bag, paper bag, aluminum foil bag, etc.) from the hopper.
  • Bag Opening: Pneumatic/mechanical opening of the bag mouth; visual positioning ensures alignment.
  • Bag Fitting: A robotic arm/slide precisely fits the bag into the filling port/product.
  • Bag Clamping/Positioning: Clamping and fixing the bag for filling/weighing.
  • Bag Transfer/Sealing: Conveying the bag to the heat-sealing/sewing station for sealing.
  • Reset: Cyclic operation.

微信图片_20260311113637_310_2





















微信图片_20260311113638_311_2

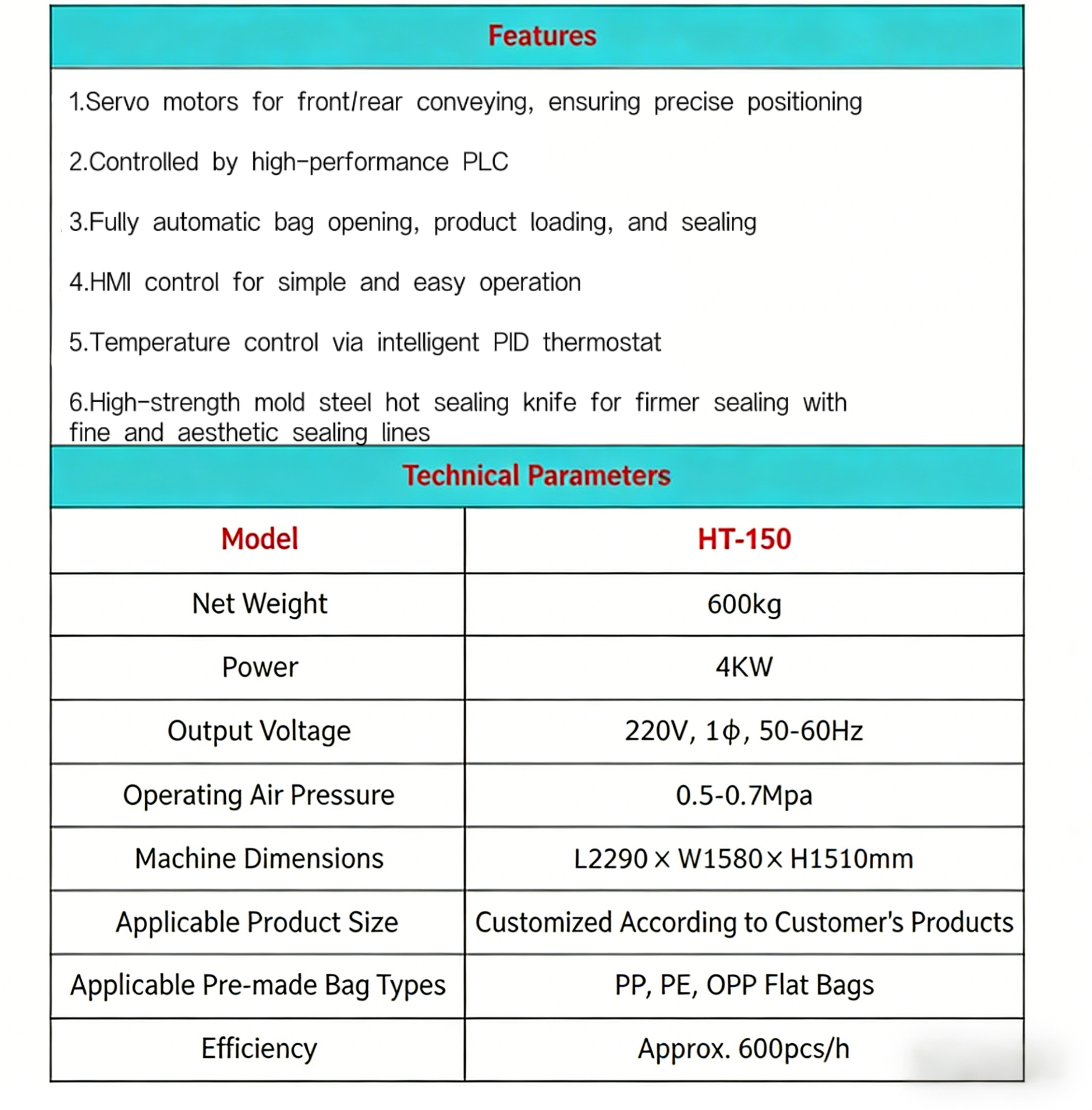

微信图片_20260311141507_316_2
