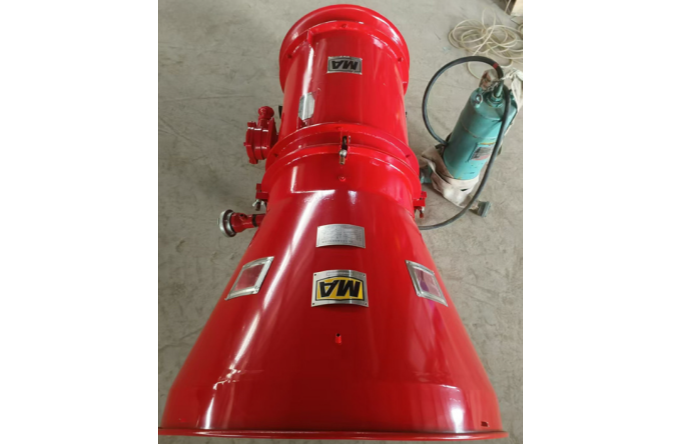

Explosion-proof firefighting equipment for underground coal mines relies on high-expansion foam to rapidly suffocate and cool down large-area solid/oil fires, making it a core piece of equipment for mine fire rescue.
Connected to an external underground fire-fighting water source, and mixed with high-expansion foam concentrate, a foam mixture is formed via a proportioning mixer.
The mixture is evenly sprayed onto a foaming mesh; an explosion-proof axial flow fan blows air at high speed, amplifying the liquid into 500-800 times its original volume of foam.

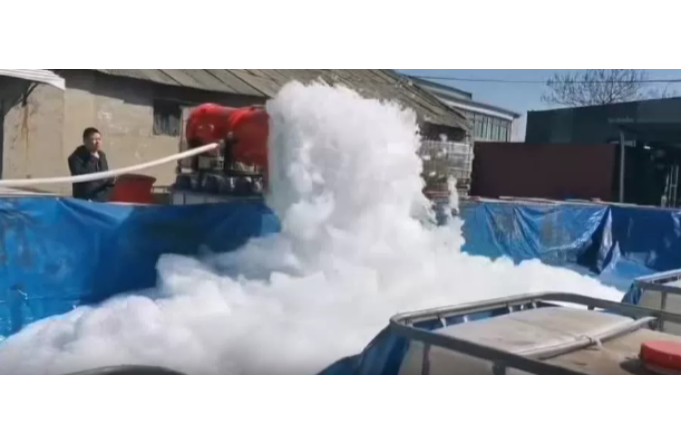

The large amount of foam rapidly rushes towards the fire area, isolating air, absorbing heat, covering combustibles, and suffocating the fire.
The entire electrical system is designed with mine-grade explosion-proof and explosion-proof structures, allowing safe use in hazardous underground environments containing gas and coal dust, with no risk of spark ignition.
| Product Model | BGP200 Mine-used High-expansion Foam Fire Extinguishing Device | BGP400 Mine-used High-expansion Foam Fire Extinguishing Device |
| Rated Foam Output | 200 m³/min | 400 m³/min |
| Fan Air Volume | 246~260 m³/min | 480~520 m³/min |
| Foam Expansion Ratio | 500~800 times (High-expansion Foam) | 500~800 times (High-expansion Foam) |
| Foam Mixed Liquid Injection Rate | 260~280 L/min | 520~560 L/min |
| Working Water Pressure of Supporting Pump | 0.15~0.3 MPa | 0.15~0.3 MPa |
| Total Installed Power | 11kW (Mine-used Flameproof Explosion-proof Motor) | 14kW (Mine-used Flameproof Explosion-proof Motor) |
| Applicable Voltage | 380V / 660V (Dual Voltage for Underground Coal Mine) | 380V / 660V (Dual Voltage for Underground Coal Mine) |
| Maximum Horizontal Delivery Distance of Foam | 300 m | 350 m |
| Overall Structure | Mobile universal wheel base, full explosion-proof design | Mobile universal wheel base, full explosion-proof design |
| Supporting Foam Liquid Standard | Compliant with MT/T 695-1997 Standard for Mine-used High-expansion Foam Fire Extinguishing Agent | Compliant with MT/T 695-1997 Standard for Mine-used High-expansion Foam Fire Extinguishing Agent |
| Core Applicable Scenarios | Small mining working faces, medium and small roadways, small closed warehouses, oil depots | Main haulage roadways of mines, large oil depots, long tunnels, large-area closed spaces |
