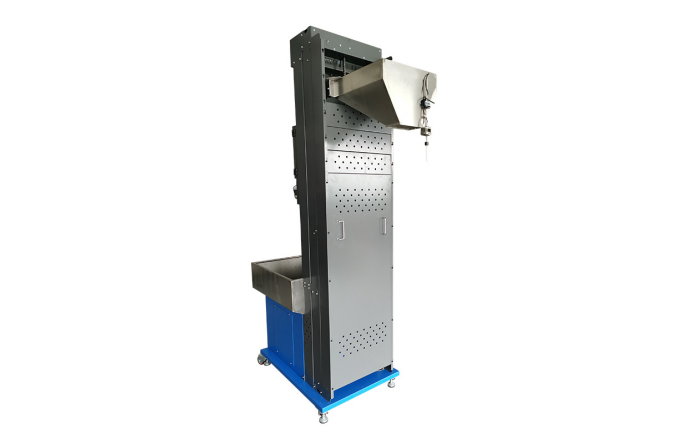

Bucket elevators are vertical/incline continuous feeding equipment. They lift and transport materials from a low place to a high place through the circulation of buckets. They are suitable for granular materials, small hardware parts, corn grains, screws, and small castings. They solve the problems of laborious manual feeding and high-altitude feeding. They are often used in conjunction with packaging machines, sorting machines, and mixers.

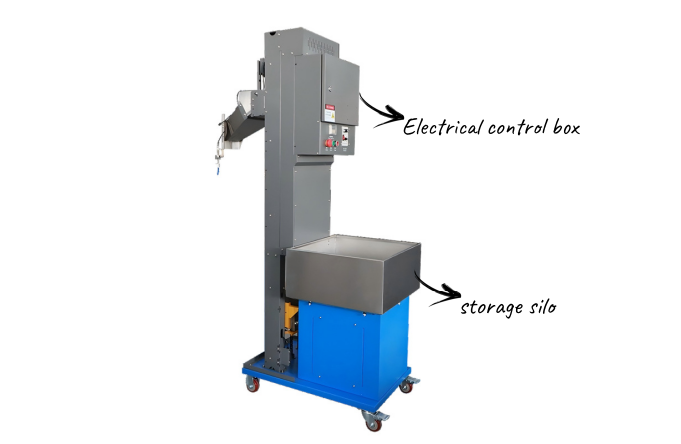

- Hopper: Plastic/stainless steel hopper; 304 stainless steel for food materials; thickened stainless steel for wear-resistant hardware screws.
- Drive Motor: Geared motor, controls lifting speed; speed adjustable available.
- Housing: Enclosed housing; prevents dust from spreading to grains; hardware version prevents material splashing and falling.
- Feed Inlet: Bottom feed, material is poured into the hopper.
- Discharge Outlet: High-level discharge, connects to the feed inlet of the next machine.
- Optional Configurations: Anti-clogging, anti-drop hopper, vibrating feeder, frequency converter speed control.
1. Compact footprint, enabling material feeding from low to high levels, saving factory space.
2. Enclosed conveyor system: Minimal grain dust; no hardware scattering.
3. High versatility: Simply change the hopper to feed corn kernels or hardware screws.
4. Variable frequency speed control: Adjust the feeding speed for automatic continuous feeding, eliminating the need for frequent manual reloading.

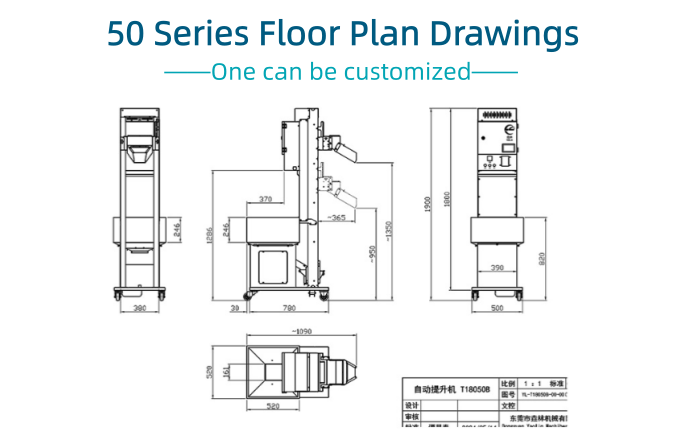

| Machine Model | Lifting Height (M) | Overall Dimension (CM) | Applicable Range (MM) | Lifting Frame Volume (L) | Material‑Storage Bin Volume (L) |
| YL18050 | 1.0‑1.35 | W52×L80×H190 | Φ20×30 | 2.6 | 80 |
| YL21050 | 1.4‑1.66 | W52×L80×H220 | Φ20×30 | 2.6 | 80 |
| YL23050 | 1.6‑1.98 | W52×L80×H240 | Φ20×30 | 2.6 | 80 |
| YL25150 | 1.9‑2.07 | W52×L80×H260 | Φ20×30 | 2.6 | 80 |
