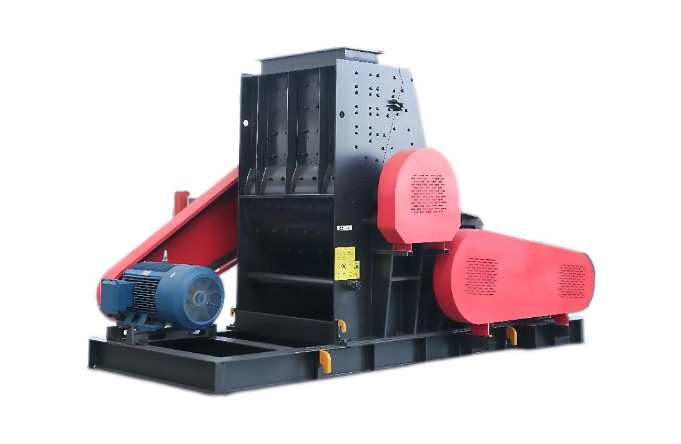

Two-Stage Hammer Crusher

Double Stage Crusher ,also called two rotors hammer fine crusher, it is a new kind of raw material crushing machine.

Product introduction

The machine is suitable for crushing cinder, slag, slag, shale, gangue, construction waste, construction waste and other materials in calcite, lime stone, brick and tile factories, and solves the problem of using spodiophyllite and cinder as additive materials and internal fuel in brick factories; The problem of crushing high-humidity materials with gangue and shale to produce standard bricks and hollow bricks.



  • The machine has no screen bottom, allowing it to process materials with high moisture content without clogging.



  • The upper and lower rotors are equivalent to two hammer crushers in one, providing both secondary and fine crushing in one unit.



  • The hydraulically operated housing allows for easy maintenance.
Model
Maximum Feeding Size(mm)
Discharge particle size(mm)
Processing Capacity(t/h)
Power (kW)
Dimensions (L×W×H)(mm)
2PC 600×600
≤30
0 - 10
10 - 30
22 + 30
2310×1166×1705
2PC 800×600
≤40
0 - 10
18 - 55
45 + 55
3220×1264×2055
2PC 1000×800
≤50
0 - 10
22 - 90
55 + 75
3858×1484×2258
2PC 1000×1200
≤50
0 - 10
30 - 120
110 + 132
4890×2360×2854
2PC 1200×1400
≤60
0 - 10
40 - 140
132 + 160
5560×2694×3254
2PC 1400×1600
≤60
0 - 10
50 - 180
200 + 200
6035×2974×4010
2PC 1600×2000
≤80
0 - 10
60 - 300
400 + 400
7170×3696×4590
