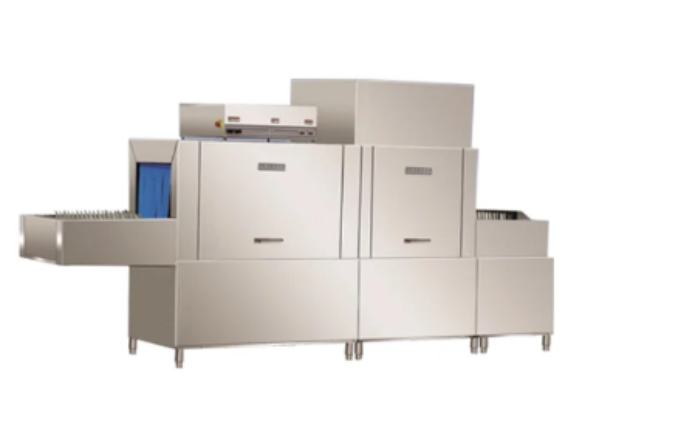

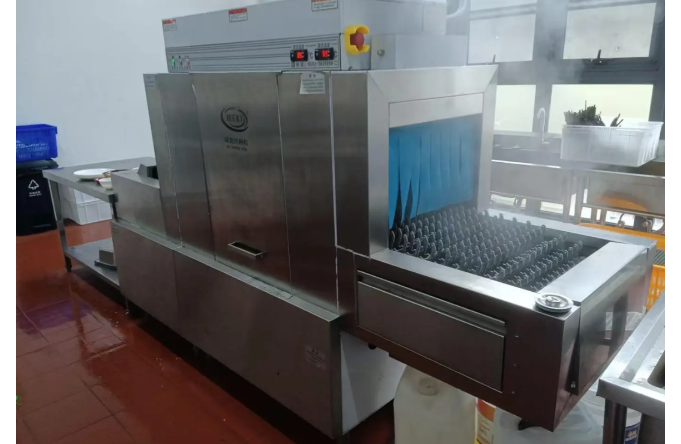

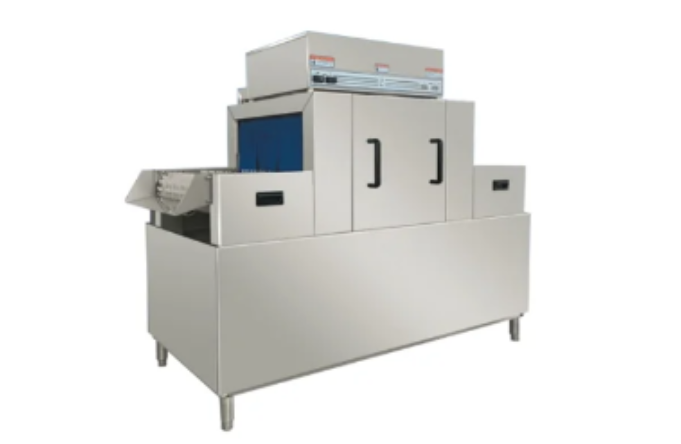

Developed and designed by combining scientific and rational machine principles with Eastern and Western culinary cultures, this fully automatic dishwasher utilizes a standard unit structure and standardized manufacturing. It primarily consists of a cleaning unit and a high-temperature water rinse and disinfection unit (85°C). The product boasts reliable quality, stable performance, low operating costs, simple operation, and is safe and easy to maintain.
1.Ultra-low water consumption significantly reduces electricity, steam, water, and detergent usage, effectively reducing operating costs.
2.Continuous conveyor washing delivers high washing efficiency, allowing for direct dishwashing and collection, eliminating the need for two separate loading and unloading baskets and simplifying operation.
3.The conveyor belt's washing speed is adjustable to suit the cleaning requirements of various tableware.
4.The washing temperature can be freely adjusted to meet specific needs, offering a high degree of automation and easier maintenance.
5.The recessed wash arm nozzles minimize clogging.
6.Flexible template combinations allow for selection of the appropriate model based on site space.
7.A limit switch is installed at the outlet to prevent damage caused by unloading left dishware.
|
|
|
|
|
|
|---|---|---|---|---|
|
Name and model |
R590-M |
R590-2M |
R590-3M |
R590-4M |
|

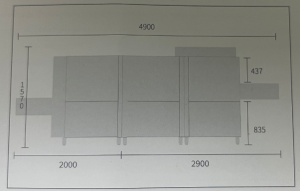

dimensions |
2600 * 950 * 1570mm |
4000 * 950 * 1570mm |
4900 * 950 * 1570mm |
5800 * 950 * 1570mm |
|
heating method |
Electric heating / steam |
Electric heating / steam |
Electric heating / steam |
Electric heating / steam |
|
Washing height |
420mm |
420mm |
420mm |
420mm |
|
Total power |
32.25KW/3KW |
45.75KW/4.5KW |
59.25KW/6KW |
72.75KW/7.5KW |
|
Basic power |
2.25KW |
3.75KW |
5.25KW |
6.75KW |
|
Main wash heating power |
12KW/0KW |
24KW/0KW |
36KW/0KW |
48KW/0KW |
|
Rinsing heating power |
18KW/0KW |
18KW/0KW |
18KW/0KW |
18KW/0KW |
|
Washing speed |
1-3m/min |
1-3m/min |
1-3m/min |
1-3m/min |
|
Water consumption |
280L/h |
280L/h |
400L/h |
480L/h |
